Quality Propane

Project Location:

Clinton, Connecticut

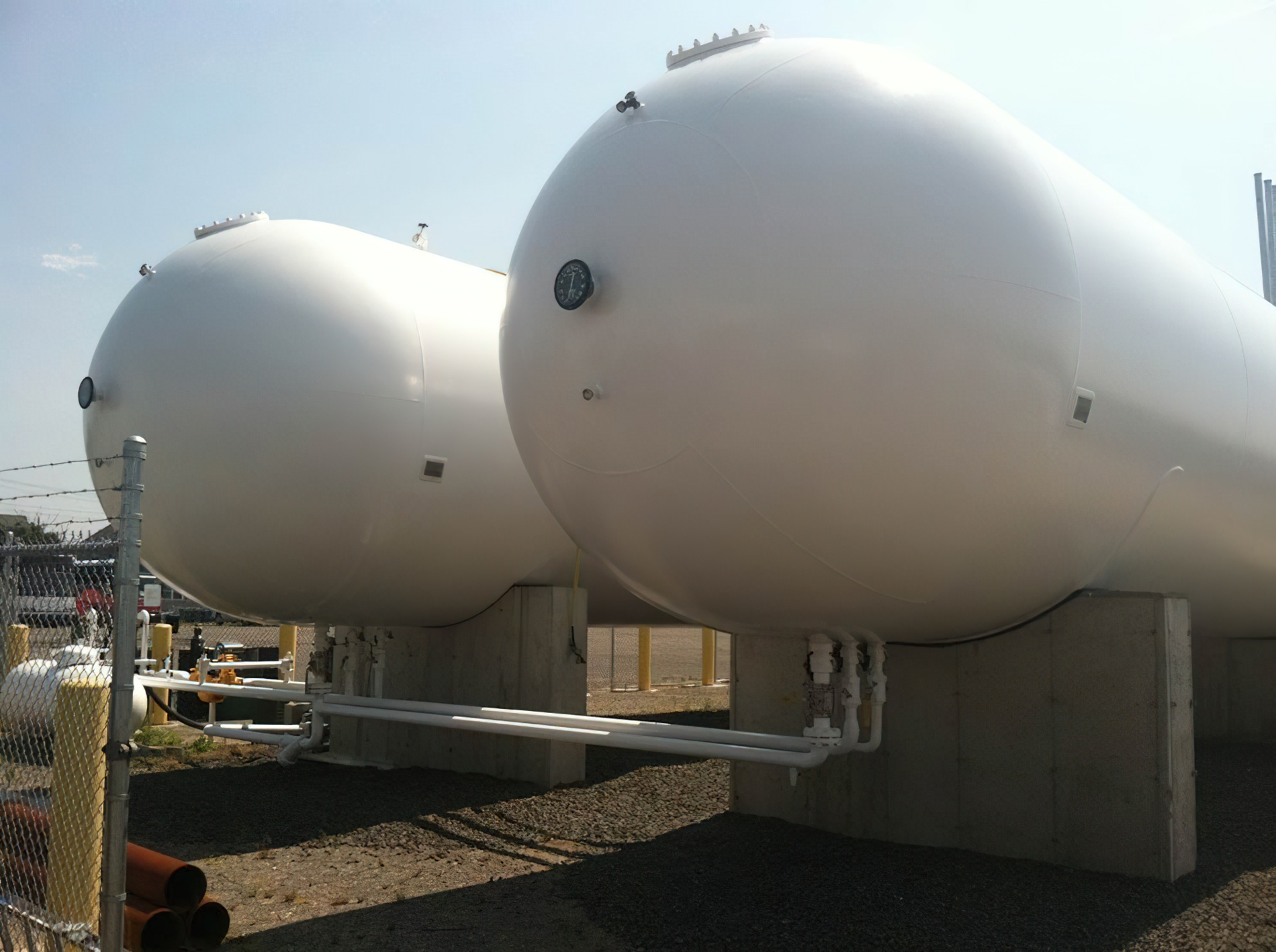

Crown Energy Solutions installed additional propane storage at Quality Propane’s location in Clinton,

CES constructed one set of concrete piers to support the additional propane

A truck service was provided to transport the tank to the job site. A crane was implemented to remove the propane storage tank from the flatbed trailer and installed on the newly constructed concrete

CES provided one new 30,000 gallon propane storage tank. The tank was equipped with an indicating dial thermometer, 0-300 psi gauge, magnitel gauge, liquid and vapor shut-off valves and nitrogen-activated internal valves. The tank was also equipped with three Fisher relief valves with 7’ risers and weather

CES manifolded the new tank into the existing piping. All of the necessary piping for both liquid and vapor lines, as well as all the necessary valves and related equipment were furnished. All of which conform to NFPA Pamphlet

The additional tank was painted and color coded as well as the piping.
